In today’s competitive manufacturing environment, reducing cost goes far beyond labor savings. Manufacturers are under increasing pressure to produce more parts with greater precision in less time, without sacrificing quality or consistency.

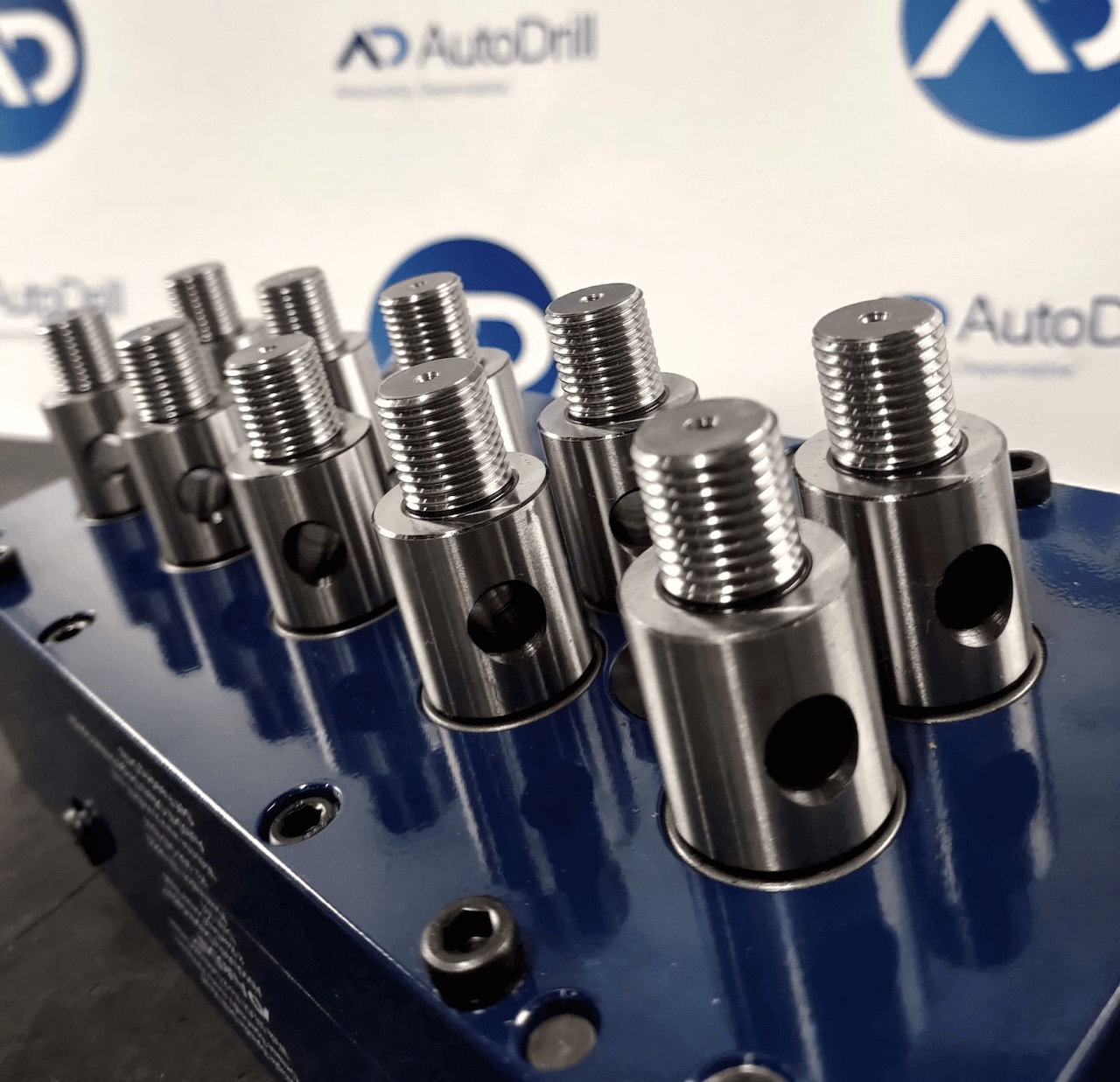

One proven way to achieve this balance is through the use of multi-spindle heads.
In this article, we’ll cover:
- What defines multi-spindle drilling and how it differs from traditional single-spindle bottlenecks.
- The 3 primary efficiency gains achieved through simultaneous holemaking.
- How to choose the right equipment
- Critical engineering factors
While labor savings are often the most visible benefit, the true long-term value of multi-spindle drilling solutions lie in productivity gains, resource optimization and improved part quality across the entire manufacturing process.
Increased productivity and efficiency
Reduced cycle time
Multi-spindle heads allow manufacturers to perform multiple holemaking operations in a single cycle. Instead of the manual “bottleneck” process of drilling one hole, repositioning the part, and drilling again, several holes are reproduced concurrently, multiplying throughput overnight.
Streamlined workflow
Consolidating operations simplifies setups and reduces part handling. For progressive operations, AutoDrill components can be configured into “Gang Drilling” lines, sequential stations where a part moves from drilling to reaming to tapping in one continuous flow.
Simultaneous operations
Drilling, tapping, chamfering, or reaming can be completed at once. For complex needs, AutoDrill provides custom variable gear ratio heads, allowing different spindles to rotate at different speeds or even different directions simultaneously.
Enhanced precision and quality
Elimination of human error
Manual repositioning introduces variability. Multi-spindle heads ensure that hole locations, depths, and alignments are locked in. Fixed heads, in particular, provide maximum consistency because the pattern is engineered into the hardware and cannot shift.
Superior accuracy
With fixed spindle positioning and rigid construction, these heads can achieve center-to-center spacing as close as 0.532 inches. This repeatability is essential for industries ranging from aerospace to medical device manufacturing.
Controlled breakthroughs
Standard pneumatic feeding can be “jumpy,” especially during material breakthroughs. AutoDrill systems utilize HydroSpeed hydraulic control to provide a consistent, positive feed. This prevents the tool from lunging, which reduces burr formation, extends tool life, and prevents work-hardening in materials like stainless steel.
Smarter resource and cost management
Lower per-part cost
Producing multiple features in a single cycle reduces machining time and overhead. For example, a 4-spindle head can reduce the machining cost of a part by nearly 75% compared to a single-spindle process.
Fewer machines and operators
Instead of adding floor space, manufacturers can increase output using fewer resources. A single AutoDrill 5200 series unit can drive a multi-drill spindle in greater quantity than ever before, effectively replacing a row of standard drill presses.
Extended tool life
By maintaining a consistent feed rate through HydroSpeed control, shock to the drill bit is minimized. Balanced cutting forces across multiple spindles also help reduce vibration, leading to fewer changeovers and lower tooling costs.
Why demand for multi-spindle heads is growing
- Labor Shortages: Automation offsets the need for manual repositioning.
- Tougher Alloys: Materials like Inconel and 316 Stainless require the consistent thrust and feed control found in the 5000 series.
- High-Density Patterns: The ability to engineer heads for 300+ spindles allows for massive scale in production.
Solutions designed for multi-spindle performance
The 2200 Series is a quill-feed unit featuring pull-style feed control. It is designed specifically for multi-spindle head compatibility where an integrated feed control is required because a mechanical stop cannot be placed on the fixture.
This is AutoDrill’s most capable unit, designed for structural steel and high-force operations. It supports heavy-duty configurations with a thrust capacity of 1,500 lbs, enabling it to drive multiple large-diameter drills through tough alloys simultaneously.
